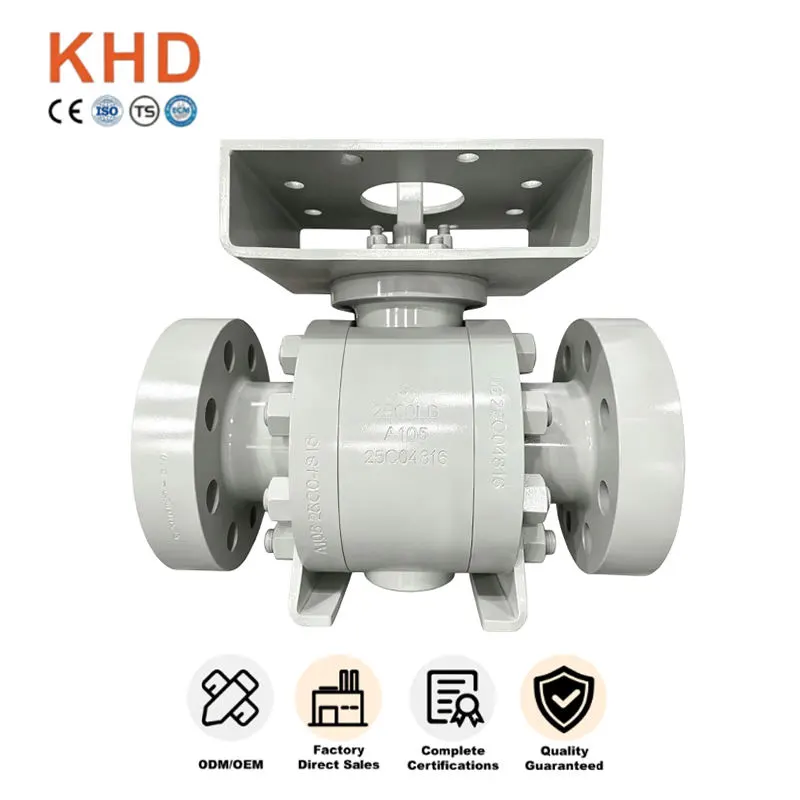

I-Stainless Steel Fixed Ball Valve Forged Flanged Ball Valve

Izici Zomkhiqizo

- Isakhiwo sebhola esingaguquki se-Trunnion, esilungele izimo zokusebenza ezinkulu nezingcindezi eziphezulu.

- Umzimba we-valve owakhiwe onezinto eziminyene, amandla aphezulu emishini nokusebenza okuhle kokunqanda ukugqwala.

- Idizayini egcwele yechweba, ukumelana nokugeleza okuncane, umthamo omkhulu wokugeleza, olungele ukuhlanza izingulube zamapayipi.

- Isihlalo esintantayo esigcwele intwasahlobo sibona ukuvala okuqinile okuphindwe kabili, izinga lokuvuza eliphansi.

- Idizayini ye-Anti-blow out stem, eyakhelwe ku-anti static kanye nesakhiwo esiphephile somlilo esithobela i-API 607.

- Isihlalo esizikhululayo sokucindezela okungavamile komgodi ukuze kuthuthukiswe ukuphepha kokusebenza.

- I-torque ephansi yokusebenza, isekela imijikelezo yokuvala yokuvula njalo yesevisi ezinzile yesikhathi eside.

Izimfanelo Ezibalulekile

Ukwakheka Komkhiqizo

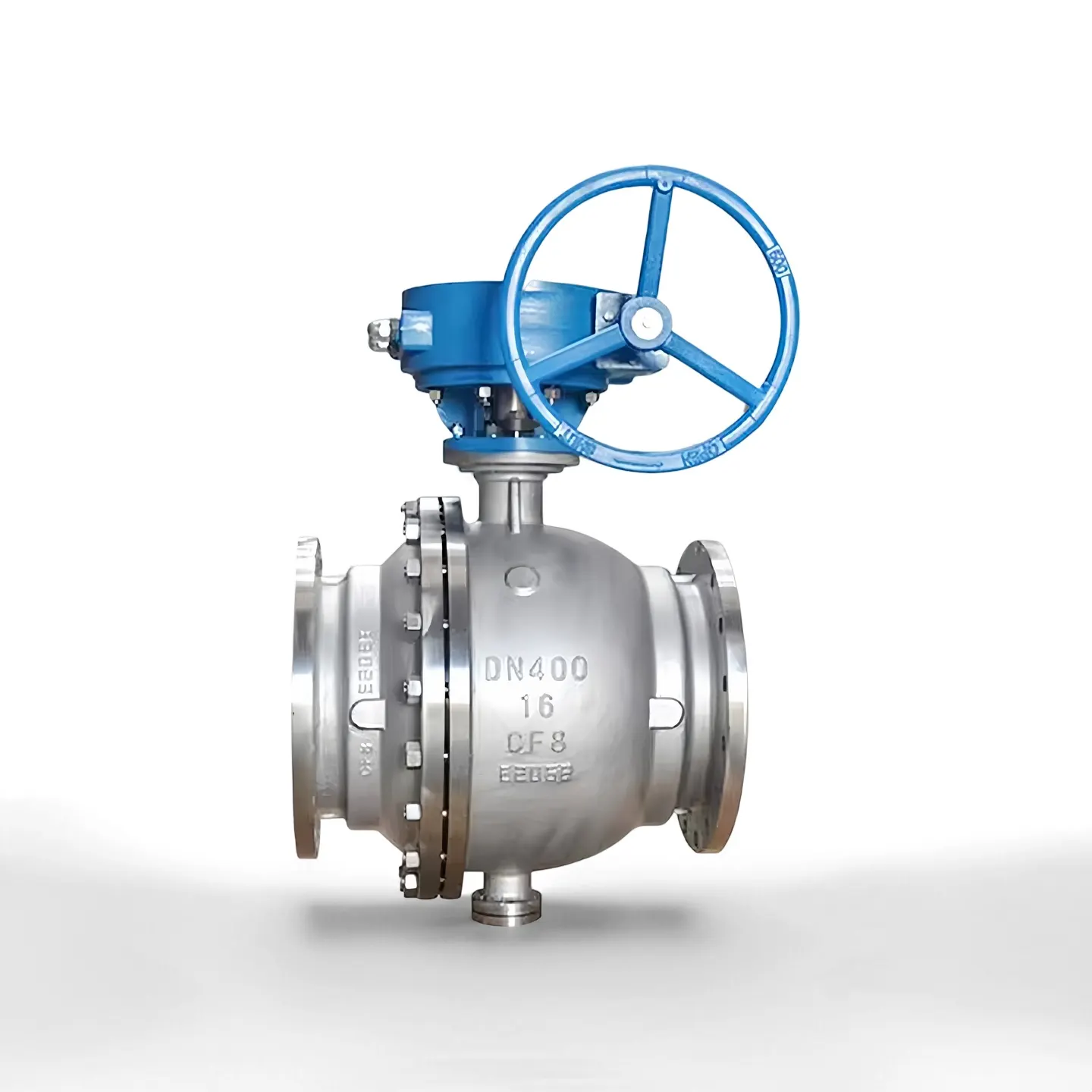

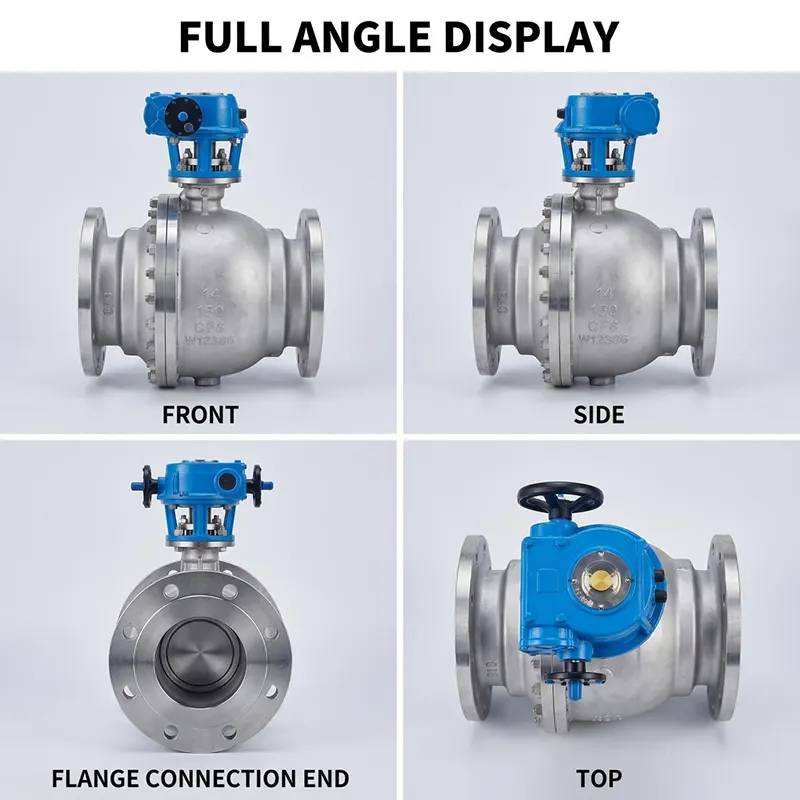

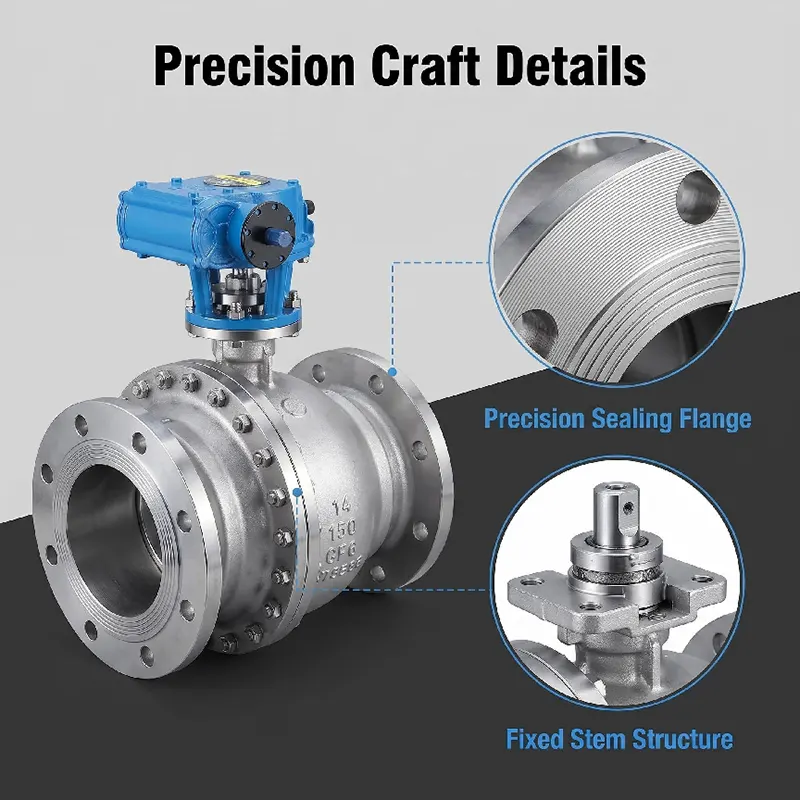

Le Valve Yebhola Engagxili Yensimbi Engagxili Yakhiwe I-Flanged Ball Valve. Ibhola lisekelwa ama-trunnion shafts aphezulu naphansi esikhundleni sokuntanta ngamandla esihlalo. Izingxenye eziyinhloko zifaka umzimba we-valve owenziwe ngomgunyathi, ibhonethi, ibhola elilungisiwe, ama-trunnion shafts aphezulu naphansi, izihlalo ezintantayo ezilayishwe kusengaphambili entwasahlobo, isiqu esinqanda ukushaywa, iziphetho zokuxhuma kwe-flange, kanye ne-ISO 5211 top mounting pad yama-actuator. Ukuvimba kabili nomsebenzi wokopha kunganikezwa ngesicelo. Izinketho zobuso be-Flange: RF, RTJ.

- Umzimba weValve / Ibhonethi: Insimbi engagqwali eyakhiwe i-A182 F304 / A182 F316L

- Ibhola: Insimbi engagqwali eyakhiwe, i-hard-chromium plated noma enobuso obunzima be-Stellite

- Isiqu: A182 F316 insimbi engagqwali

- Seat Seal: PTFE / RPTFE for soft-seal; I-Stellite 6 i-hard-alloy yensimbi eqinile-seal

- I-Gasket & O ring: I-FKM, i-PTFE, eyenzelwe imidiya ehlukene yokushisa

- Amabhothi: B8 / B8M amabhawodi ensimbi engagqwali

I-Pressure & Temperature Range

-Ikilasi Lokucindezela: PN16-PN100, Class150-Class2500

-Izinga lokushisa lokusebenza:

•Inguqulo ye-soft-seal:-29℃ ~ +200℃

•Inguqulo ye-Metal hard-seal: -29℃ ~ +425℃

-Izinga Lokuhlola: I-API 598, ukuhlolwa kwegobolondo izikhathi ezingu-1.5 ezilinganiselwe; ukuhlolwa kwesihlalo izikhathi ezingu-1.1 zikalwe ingcindezi

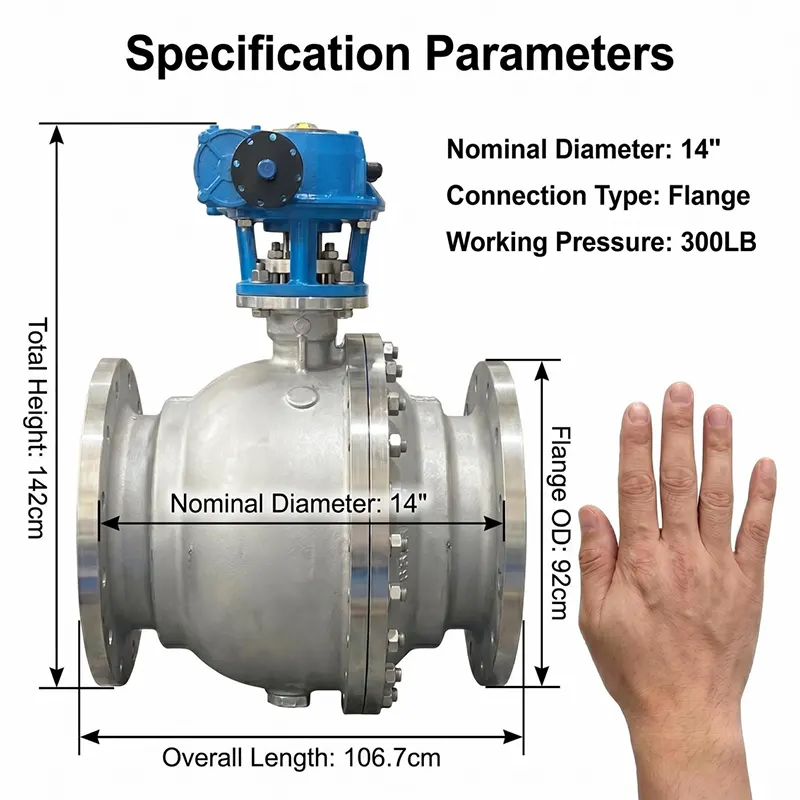

-Usayizi Ububanzi: DN50-DN600 (NPS2"-NPS24")

Izinhlobo Zokusebenza

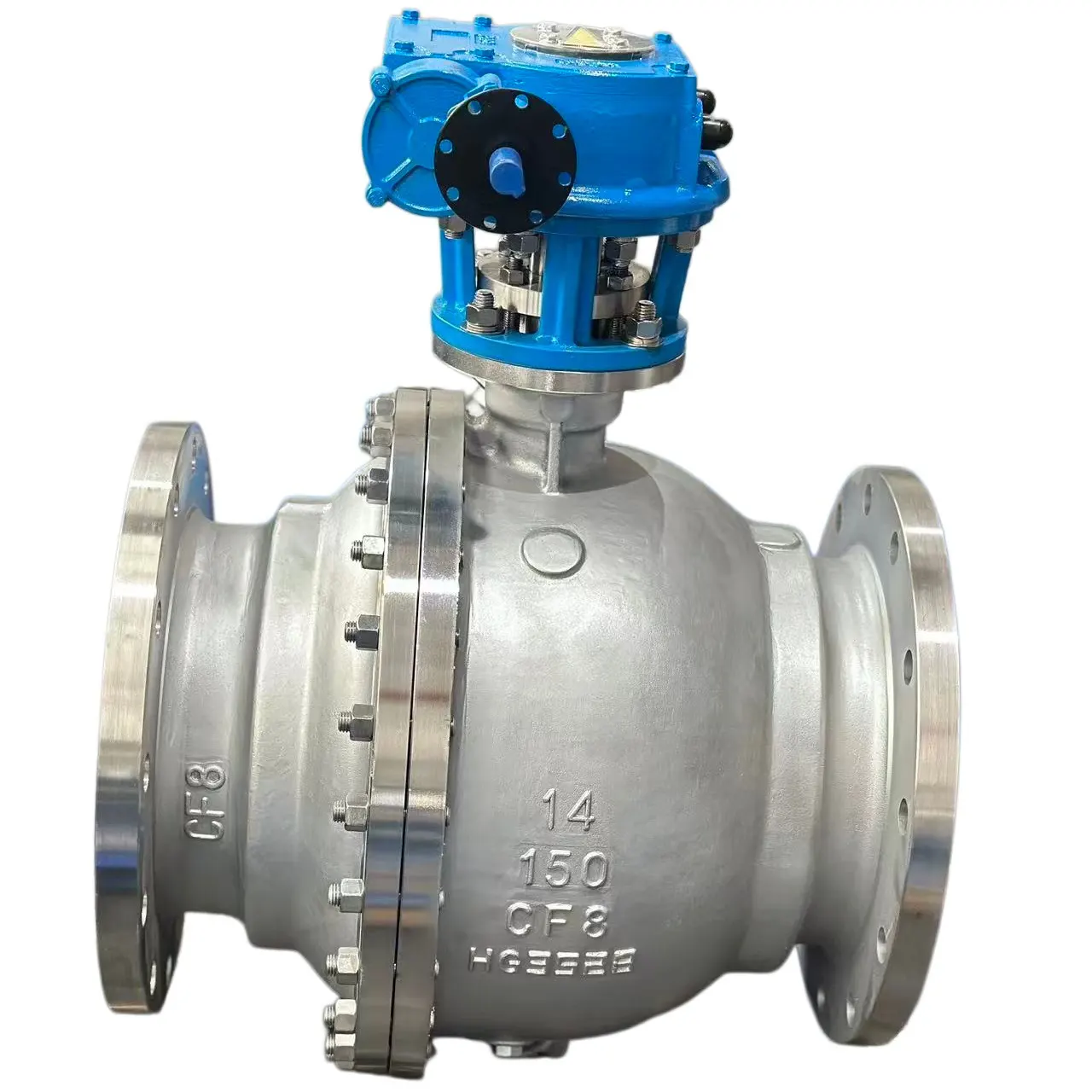

-Manuwali: Opharetha wegiya lezikelemu ngesidingo esikhulu setorque

-I-Pneumatic: I-acting eyodwa / i-double actuator pneumatic, ene-switch switch & valve solenoid

-Ugesi: Uhlobo oluvaliwe noma i-actuator kagesi emodulayo yokulawula okuzenzakalelayo okukude

-I-hydraulic / electro hydraulic actuation iyatholakala ngesicelo esikhethekile

Wonke ama-actuator alingana neplathifomu yokukhweza ye-ISO 5211.

Izinhlelo zokusebenza

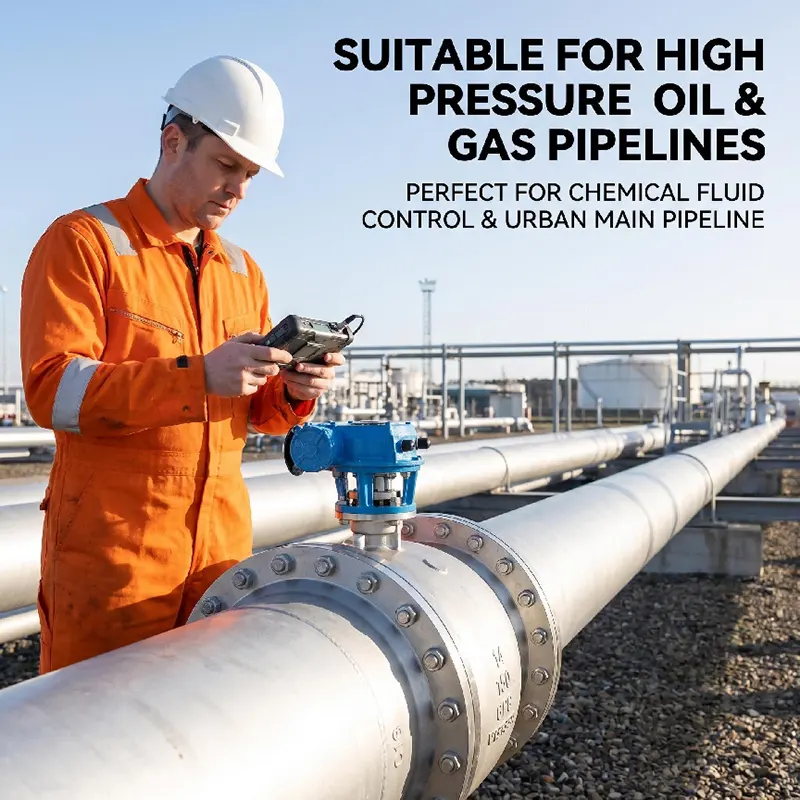

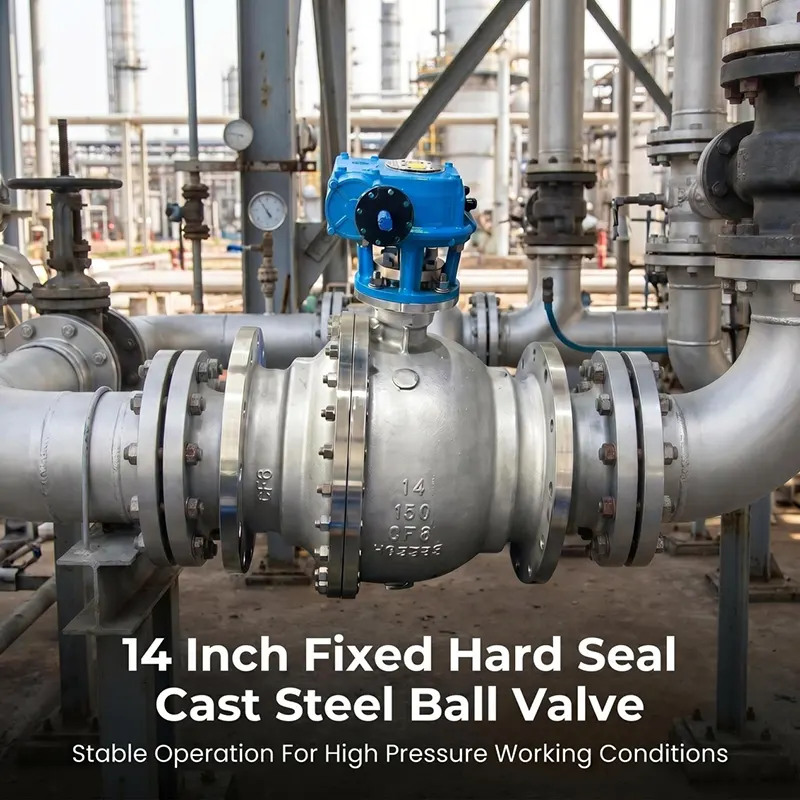

Yamukeleke kakhulu kusevisi yokuvula nokuhlukanisa uketshezi, igesi nendawo edlayo. Isetshenziswa kakhulu kumapayipi amabanga amade kawoyela negesi, izitshalo ze-petrochemical, ukucutshungulwa kwamakhemikhali, ukuphehla amandla, ukuhlanzwa kwamanzi, i-LNG namanye amaphrojekthi ezimboni ezisindayo.

Kungani Khetha Ivalvu Yethu Yebhola Engagxili Yensimbi Engagqwali Forged Flanged Ball Valve?

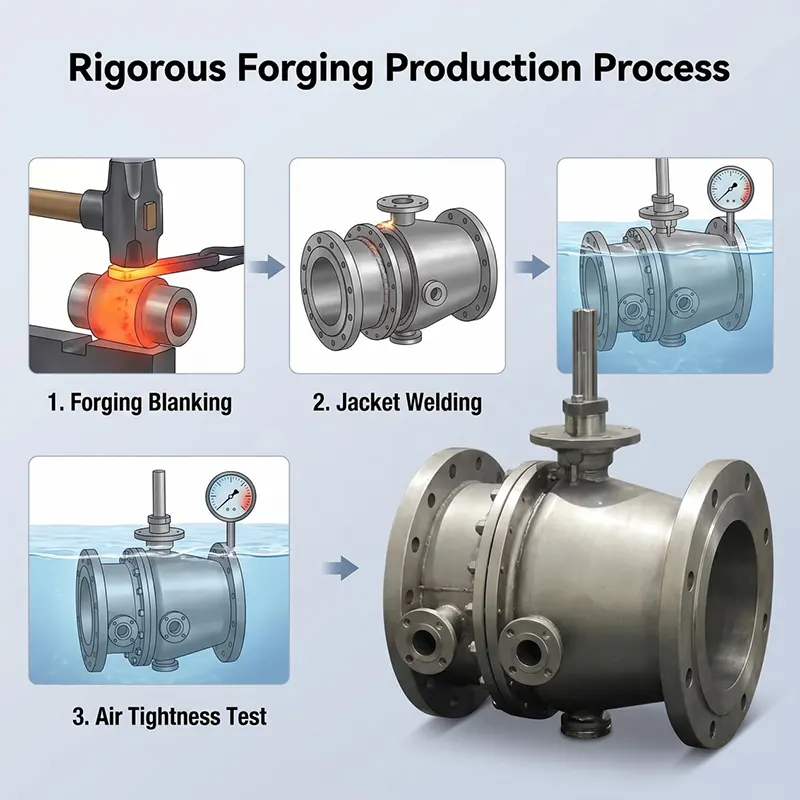

1. Yamukela inqubo yokubumba egcwele, impahla yangaphakathi ehlangene ngaphandle kokulimala kwe-porosity, vumela ipayipi lomsebenzi osindayo.

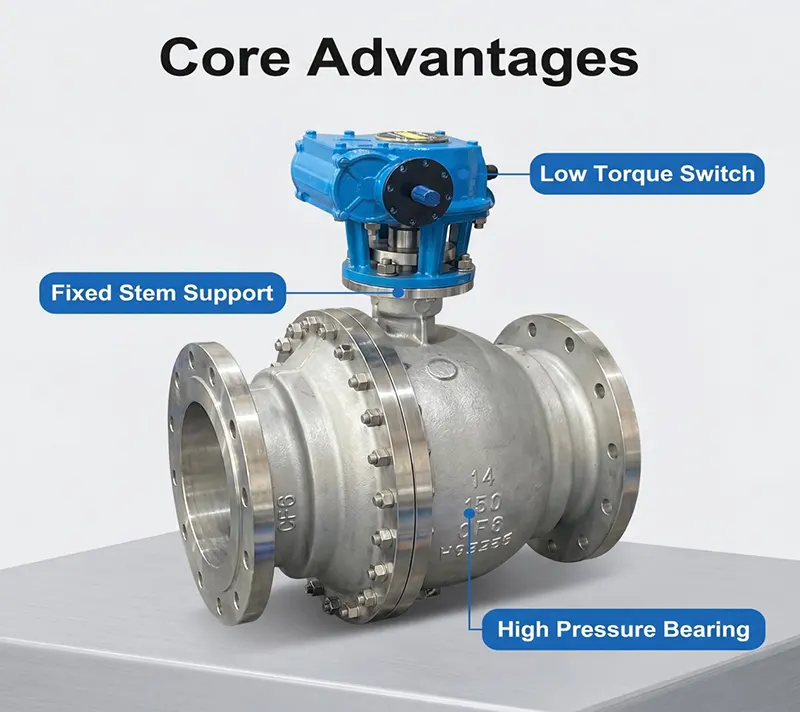

2. Idizayini yebhola elungisiwe ye-Trunnion inciphisa kakhulu i-torque yokusebenza kusayizi omkhulu wesimo sokusebenza sokucindezela okuphezulu.

3. Ukuhlola okungenayo okuqinile kwempahla, wonke ama-valve adlula isivivinyo sokuvuza esigcwele se-hydrostatic nesihlalo segesi ngaphambi kokulethwa.

4. Sekela izinguqulo ezimbili ze-soft-seal kanye ne-hard-seal ukuze zihambisane nezimfuneko ezihlukene zokushisa nezimaphakathi.

5. Sinikeza ukwesekwa okuphelele kwezobuchwepheshe, ukubuyekezwa komdwebo kanye nesiqondiso sangemva kokuthengisa sephrojekthi yakho.

Umhlahlandlela Wokuthenga

Sicela unikeze imininingwane engezansi lapho uthumela umbuzo:

1. Usayizi wegama kanye nesigaba sokucindezela

2. Indawo yokusebenza, izinga lokushisa langempela lokusebenza

3. Uhlobo lophawu: uphawu oluthambile noma uphawu oluqinile lwensimbi

4. Uhlobo lokusebenza (igiya lezikelemu / umoya / ugesi njll.)

5. I-Flange ejwayelekile & uhlobo lobuso be-flange (RF / RTJ)

6. Isidingo esikhethekile: ukuphepha komlilo, umsebenzi we-DBB, ukwelashwa kwe-anti corrosion njll.

Unjiniyela wethu uzokunikeza isiphakamiso esifanele ngokuya ngesimo sakho sokusebenza.

Ukupakisha Nokuthumela

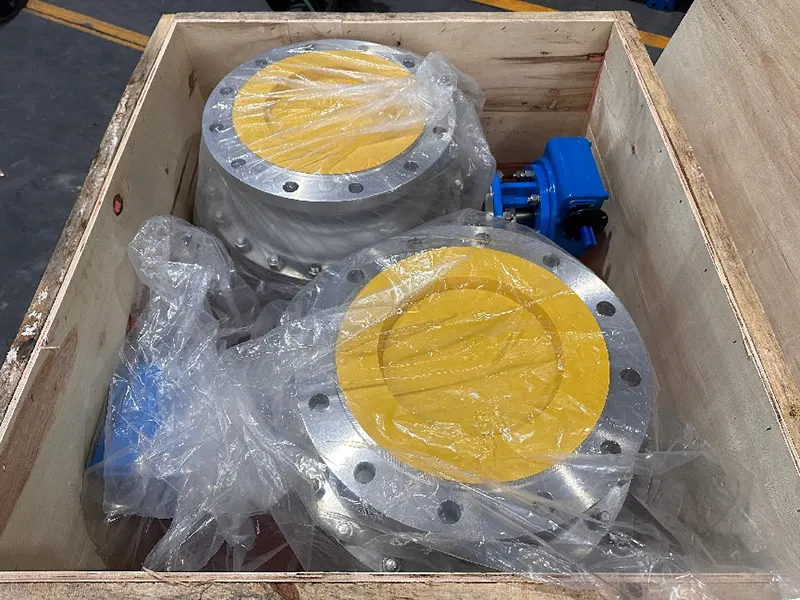

I-valve ngayinye izohlanzwa futhi ivikelwe ngaphambi kokupakishwa. Izimbobo zamavalvu zivalwa ngezivalo zepulasitiki ukuze kugcinwe umgodi wangaphakathi uhlanzekile. Ama-valve apakishwe emakhrethini e-plywood aqinile afanele ukuthuthwa olwandle. Sisekela i-EXW, i-FOB, i-CIF, i-DAP neminye imigomo yokuhweba. Izimpahla zingalethwa esikhumulweni semikhumbi esikhethiwe noma endaweni yokugcina impahla.

OEM & ODM

Samukela ama-oda we-OEM ne-ODM. Singakwazi ukwenza ngokwezifiso impahla yomzimba, impahla yophawu, indinganiso ye-flange, isiqu sesandiso esikhethekile, umdwebo okhethekile kanye nokumaka uphawu ngokusho komdwebo wamakhasimende noma imfuneko yobuchwepheshe. I-MOQ eguquguqukayo yama-oda wephrojekthi.

Ukuhlola & Ukuhlola

Wonke ama-valve adlula ekuhlolweni kwebanga eligcwele ngaphambi kokuthunyelwa ngokwezinga le-API 598.

- Ukuhlolwa okungenayo kwempahla eluhlaza: ukwakheka kwamakhemikhali okubalulekile kanye nokuhlolwa kwempahla eyimishini, irekhodi lokulandeleka kwempahla linikeziwe.

- Ukuhlolwa kwe-Shell hydrostatic: Izikhathi eziyi-1.5 zikalwe ingcindezi yomzimba we-valve nebhonethi.

- Ukuhlolwa kokuvuza kwesihlalo: ingcindezi elinganiselwe izikhathi eziyi-1.1, amanzi noma i-nitrogen medium.

- Ukuhlolwa okubonakalayo, ukuhlola ubukhulu, upende nokuhlolwa kokuqedwa kwengaphezulu.

- Ukuhlolwa kofakazi okwenziwa isikhungo sesithathu esinjenge-SGS, i-BV yamukeleka ngesicelo seklayenti.

- Isethi egcwele yemibhalo ehlanganisa nesitifiketi sokuhlolwa kwempahla ye-MTC, umbiko wokuhlolwa kwamanzi, isitifiketi sokuvumelana kunganikezwa.

Umhlahlandlela Wokufaka Nokulungisa

- Hlanza ipayipi kahle ngaphambi kokufakwa ukuze usule i-slag yokushisela, isihlabathi nemfucumfucu, ugweme ukulimala kobuso obuvaliwe.

- Faka i-valve ngendlela efanele yokugeleza, qinisa amabhawodi e-flange awele ngokuhlakanipha nangokulinganayo.

- Ungagcini i-valve isendaweni evulekile uhhafu ukuze igcinwe isikhathi eside noma isebenze.

- Ukuze usebenze njalo, sebenzisa umjikelezo wokuvala ukuvulwa kwe-stroke ngezikhathi ezithile ukuze uvimbele ukunamathela kwezimpawu.

- Hlola ilunga le-flange, ukupakishwa kwe-stem ukuvuza kwangaphandle ngesikhathi sokuhlolwa kwesayithi okujwayelekile.

- Shintsha izingxenye ezigugile ngesikhathi sokuvalwa okuhleliwe; sebenzisa i-seal material efanayo endaweni yakho yokusebenza.

- Uma ifakwe i-actuator, hlola i-torque ye-actuator, nciphisa isimo sokushintsha njalo.

Isevisi yangemuva kokuthengisa

-Isikhathi sewaranti: Iwaranti yezinyanga eziyi-12 ibalwa kusukela ngosuku lokuthunyelwa kwayo, ngokumelene nokukhubazeka kokukhiqiza.

-Sinikeza ukusekelwa kwezobuchwepheshe okubandakanya ukubuyekezwa komdwebo, ukuqinisekiswa kwepharamitha kanye nesiqondiso sokusebenza.

-Ithimba lethu lonjiniyela liphendula imibuzo yobuchwepheshe phakathi kwamahora angama-24 okusebenza.

-Izingxenye ezisele (izihlalo, ama-gaskets, ukupakishwa kwesiqu) ziyatholakala ukuze zi-odwe kabusha.

-Ukubonisana kwezobuchwepheshe endaweni kungahlelwa ama-oda amakhulu ephrojekthi.

Qaphela: Iwaranti AYIVAVAZI umonakalo odalwe ukufakwa okungalungile, ukungasebenzi kahle noma isimo esimaphakathi esingalungile.

Imikhiqizo Enconyiwe Ehlobene

-I-valve yebhola entantayo (izingcezu ezi-2 / izingcezu ezi-3 i-valve yebhola yensimbi engagqwali)

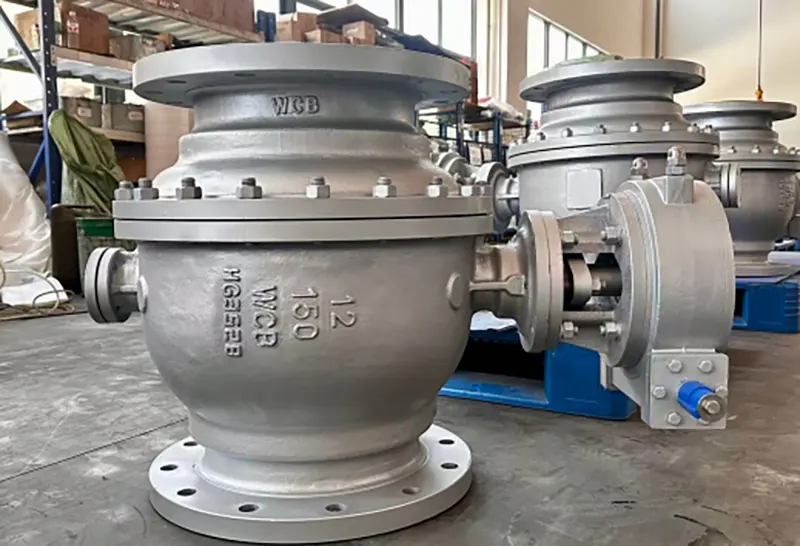

-WCB carbon steel fixed trunnion ball valve

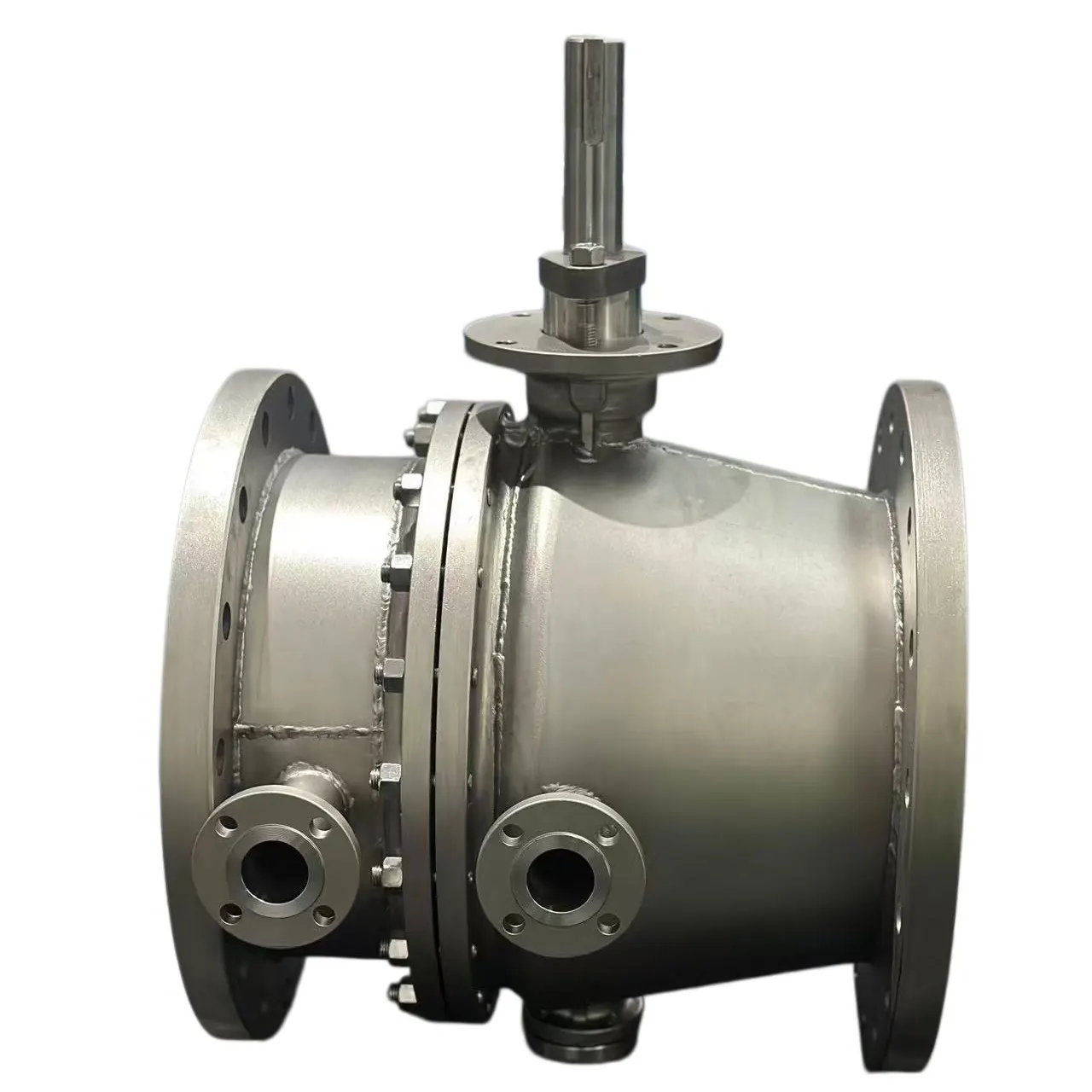

-I-valve yebhola ehlanganisiwe yejacket ye-high viscosity medium

-I-valve yebhola enesethi ye-actuator yomoya / kagesi ephelele

-Metal hard-seal fixed ibhola valve for izinga lokushisa eliphezulu service

Amandla Efekthri Yethu

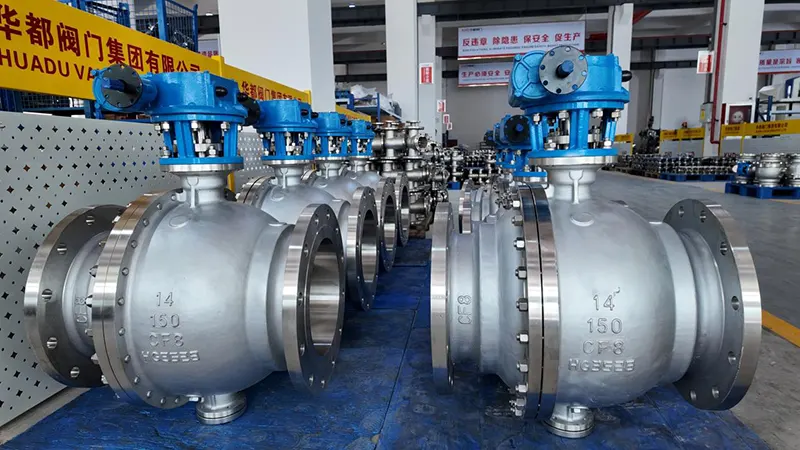

I-Huadu Valve Group itholakala e-Wenzhou China, ikhethekile ekwakhiweni kwamavalvu ezimboni, ukubumba, ukukhanda imishini nokuhlanganisa. Sinemigqa yokukhiqiza ephelele ehlanganisa ishabhu yokuqamba, indawo yokusebenzela yemishini ye-CNC, indawo yokusebenzela yokuhlanganisa kanye nelebhu yokuhlola ezimele. Zonke izinqubo zokukhiqiza ezibucayi ziqedwa endlini, azikhishelwa ngaphandle ngokugcwele. Sinolwazi olucebile lwegesi kawoyela yaphesheya, i-petrochemical kanye nama-oda wephrojekthi yokuphakelwa kwamanzi. Imikhiqizo yethu ithunyelwa eNingizimu-mpumalanga ye-Asia, Middle East, Europe nezinye izifunda.

Shayela Ukuze Ubuze

Sicela usithumele enemininingwane yezidingo zakho zesimo sokusebenza ezihlanganisa usayizi, ingcindezi, okuphakathi, izinga lokushisa, uhlobo lokusebenza nezimfuno ezikhethekile. Ithimba lethu lezobuchwepheshe lizokuhlola futhi likulungiselele ikhotheshini esemthethweni maduzane. Wamukelekile ukuhleleka kwesampula nokubambisana kwephrojekthi enkulu.
