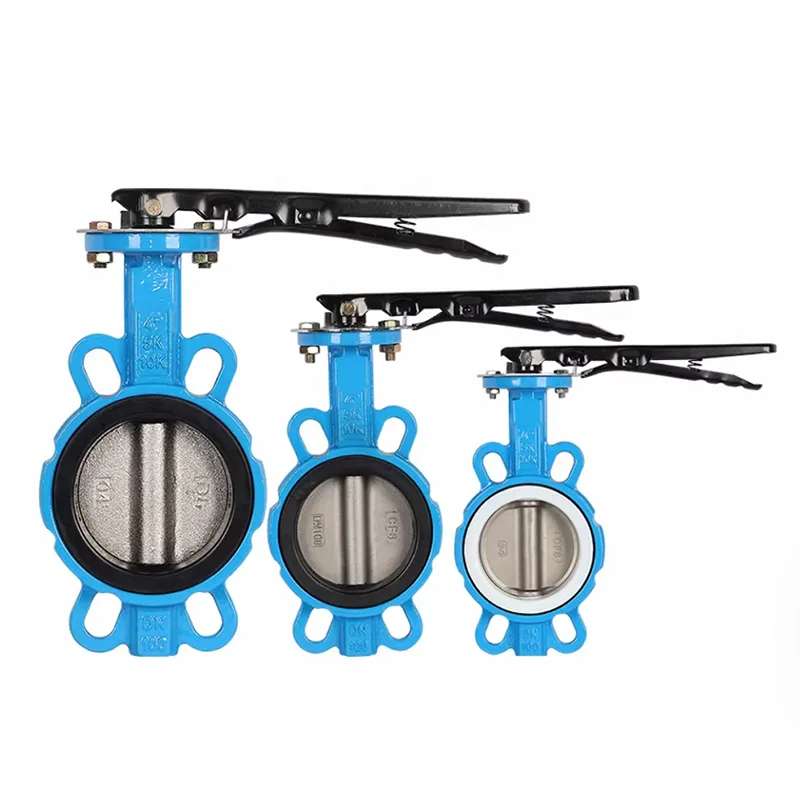

I-Butterfly Valve ye-Manual

Ukuthola i-Butterfly Valve enezincazelo eziphelele, ikhwalithi ezinzile, nokulethwa okusheshayo kuyinselele evamile ekuthengeni izinto zobunjiniyela. Ngesipiliyoni seminyaka yokukhiqiza, i-Huadu inikeza isixazululo sokuma okukodwa ngokusebenza okuthembekile, ukumbozwa kosayizi ogcwele, namandla okunikezela aqinile.

Izici Zomkhiqizo

Ukusebenza Okusheshayo

Idizayini yetorque ephansi inciphisa amandla okusebenza cishe ngo-30%

Ukuvula/vala ngokushesha ngokusebenza okulula kwesibambo

Awekho amathuluzi ayinkimbinkimbi adingekayo, ukuthuthukisa ukusebenza kahle kwendawo

I-Butterfly Valve ye-Butterfly ilungele ukushintsha amasistimu wamapayipi njalo

I-Compact & Lightweight

Isakhiwo se-wafer songa isikhala sokufaka esingu-30–50%.

Idizayini engasindi inciphisa izindleko zokuhamba nezokusebenza

Ukufakwa kalula ngaphandle kokuqondanisa kwe-flange eyinkimbinkimbi

Ilungele amaphrojekthi anendawo elinganiselwe yokufaka

Izicelo Ezihlukahlukene

Ibanga losayizi: DN40–DN1200 kumapayipi amancane kuya kwamakhulu

Ingcindezi: PN10 / PN16 (iyatholakala ngezifiso)

Ibanga lokushisa: -20°C kuya ku-120°C

Ifanele:

Ukunikezwa kwamanzi nokukhipha amanzi

Amasistimu endle

Amapayipi we-HVAC

Imidiya kawoyela yezimboni jikelele

Uphawu oluthambile ongalukhetha (ukuvuza kwe-zero) noma uphawu oluqinile (ukumelana nezinga lokushisa eliphezulu)

Izindleko Eziphansi Nenani Eliphezulu

Izindleko eziphansi ngo-40-50% kunamavalvu esango anosayizi ofanayo

Ukunikezwa okuqondile kwasefekthri—akukho umaki wabamaphakathi

Ukonga okubalulekile kokuthengwa kwephrojekthi enobubanzi obukhulu

Impilo ende yesevisi (iminyaka engu-5+) inciphisa izindleko zokushintshwa

Ukuqinisekiswa Kwekhwalithi Okunokwethenjelwa

Kwenziwe ngokwezinga le-JB/T8527

Amandla angu-100% nokuhlolwa kokuvala ngaphambi kokulethwa

Inqubo ephelele ye-QC kusuka ezintweni ezingavuthiwe kuya emikhiqizweni eqediwe

Ukusebenza okuzinzile nokuvuza okuncane noma ingozi yokwehluleka

Ukusebenza Kwephrojekthi Okuqinisekisiwe

I-Butterfly Valve Isetshenziswa Kabanzi kumaphrojekthi kamasipala wamanzi nokushisisa

Ama-oda amaningi (amayunithi angu-100+) asetshenziswe ngempumelelo kumaphrojekthi wangempela

Kuqinisekisiwe akukho ukuvuza noma ukuminyana ngemva kokufakwa

Ukudluliselwa kwamakhasimende okuqinile nokuphinda ukuthenga

Ukulethwa Okusheshayo Nokunikezela Okukodwa

3,000+ imikhiqizo esitokweni

Osayizi abajwayelekile (DN50–DN200) bathunyelwe phakathi kwamahora angama-48

Osayizi abakhulu bangokwezifiso balethwe ngokushesha ezinsukwini ezi-3-5 kunezimbangi

Imiyalo yezimo eziphuthumayo iyasekelwa ukuze kugwenywe ukubambezeleka kwephrojekthi

Ngazi kanjani ukuthi i-valve uvemvane imanuwali ivuliwe noma ivaliwe?

Isikhundla sokubamba:

Indlela elula yokubona isimo se-valve uvemvane iwukuba uhlole isiqondiso sesibambo. Uma isibambo sihambisana nepayipi, i-valve ivuleke ngokugcwele; uma i-perpendicular, i-valve ivalwe ngokugcwele.

Ipuleti Lenkomba:

Ama-valve amaningi afakwe ipuleti lenkomba elimakwe ukusuka ku-0° ukuya ku-90°. Ukufundwa kuka-0° kusho ukuthi ivalvu ivaliwe, kuyilapho u-90° ebonisa ukuthi ivuleke ngokugcwele, okuvumela ukuqinisekiswa okubonakalayo okusheshayo.

Indawo Yesiqu:

Isiqu se-butterfly valve sizungeza kanye nediski yangaphakathi. Lapho isiqondiso se-stem sihambisana nokugeleza, i-valve ivuliwe; uma inqamula isiqondiso sokugeleza, i-valve ivaliwe.

Uhlobo lwe-Wafer:

Kuma-valve ohlobo lwe-wafer afakwe phakathi kwama-flange, izingxenye zangaphakathi azibonakali, ngakho-ke isikhundla sivame ukuhlulelwa ngesibambo noma ipuleti lenkomba phezulu.

Uhlobo lwe-Lug:

Amavalvu ohlobo lwe-Lug ngokuvamile anezakhiwo zokukhweza ezicacile kanye nezimpawu, okwenza kube lula ukunquma isimo esivulekile noma esivaliwe ngendawo yokubamba noma isibonisi senkomba.
